A Coding Implementation to Build a Unified Apache Beam Pipeline Demonstrating Batch and Stream Processing with Event-Time Windowing Using DirectRunner
In this tutorial, we demonstrate how to build a unified Apache Beam pipeline that works seamlessly in both batch and stream-like modes using the DirectRunner. We generate synthetic, event-time–aware data and apply fixed windowing with triggers and allowed lateness to demonstrate how Apache Beam consistently handles both on-time and late events. By switching only the input source, we keep the core aggregation logic identical, which helps us clearly understand how Beam’s event-time model, windows, and panes behave without relying on external streaming infrastructure. Check out the FULL CODES here.

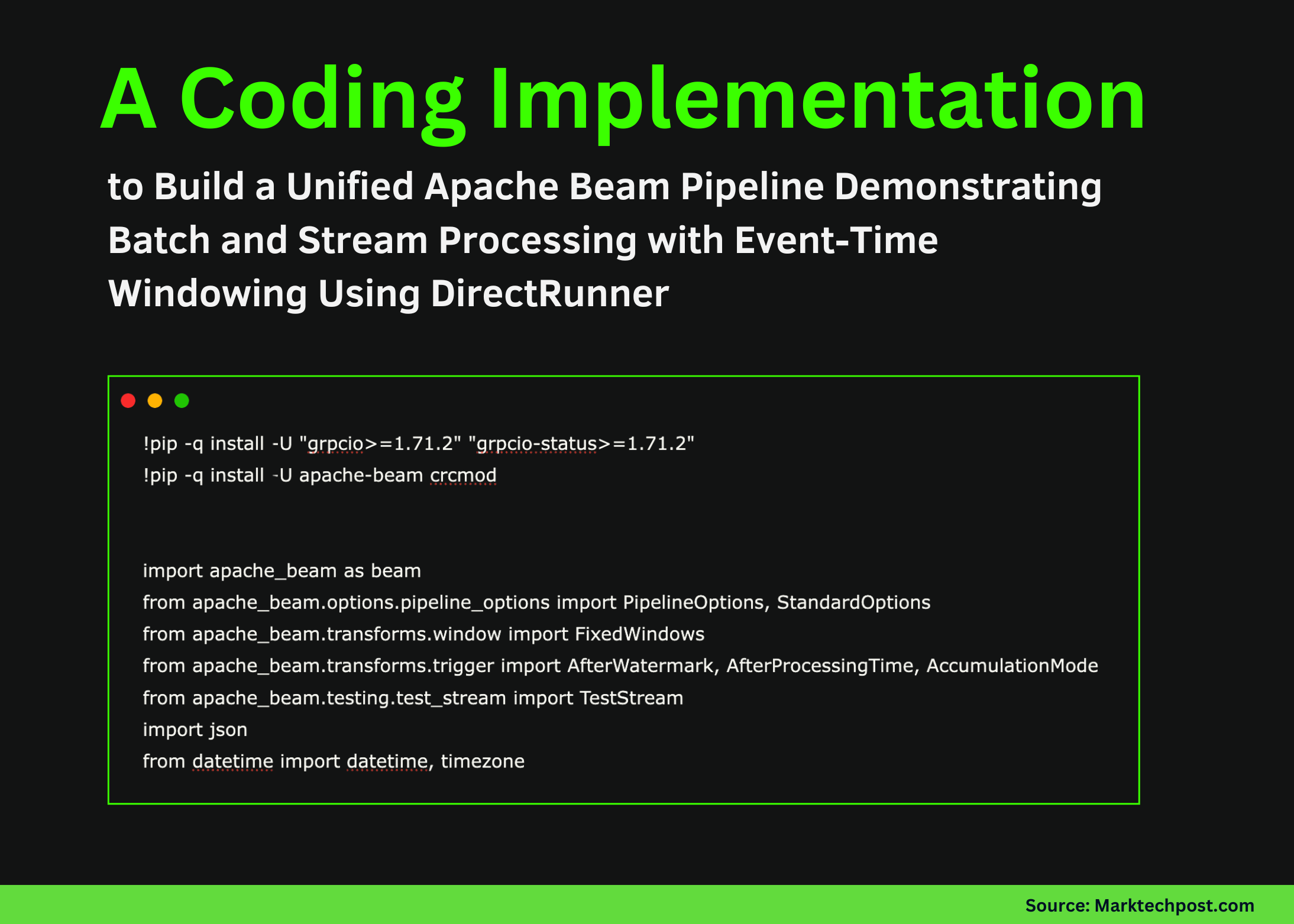

!pip -q install -U apache-beam crcmod
import apache_beam as beam
from apache_beam.options.pipeline_options import PipelineOptions, StandardOptions
from apache_beam.transforms.window import FixedWindows
from apache_beam.transforms.trigger import AfterWatermark, AfterProcessingTime, AccumulationMode
from apache_beam.testing.test_stream import TestStream
import json
from datetime import datetime, timezone
We install the required dependencies and ensure version compatibility so that Apache Beam. We import the core Beam APIs along with windowing, triggers, and TestStream utilities needed later in the pipeline. We also bring in standard Python modules for time handling and JSON formatting. Check out the FULL CODES here.
WINDOW_SIZE_SECS = 60
ALLOWED_LATENESS_SECS = 120
def make_event(user_id, event_type, amount, event_time_epoch_s):
return {“user_id”: user_id, “event_type”: event_type, “amount”: float(amount), “event_time”: int(event_time_epoch_s)}
base = datetime.now(timezone.utc).replace(microsecond=0)
t0 = int(base.timestamp())
BATCH_EVENTS = [
make_event(“u1”, “purchase”, 20, t0 + 5),
make_event(“u1”, “purchase”, 15, t0 + 20),
make_event(“u2”, “purchase”, 8, t0 + 35),
make_event(“u1”, “refund”, -5, t0 + 62),
make_event(“u2”, “purchase”, 12, t0 + 70),
make_event(“u3”, “purchase”, 9, t0 + 75),
make_event(“u2”, “purchase”, 3, t0 + 50),
]
We define the global configuration that controls window size, lateness, and execution mode. We create synthetic events with explicit event-time timestamps so that windowing behavior is deterministic and easy to reason about. We prepare a small dataset that intentionally includes out-of-order and late events to observe Beam’s event-time semantics. Check out the FULL CODES here.
user_id, d = kv
return {
“user_id”: user_id,
“count”: int(d[“count”][0]) if d[“count”] else 0,
“sum_amount”: float(d[“sum_amount”][0]) if d[“sum_amount”] else 0.0,
}
class WindowedUserAgg(beam.PTransform):
def expand(self, pcoll):
stamped = pcoll | beam.Map(lambda e: beam.window.TimestampedValue(e, e[“event_time”]))
windowed = stamped | beam.WindowInto(
FixedWindows(WINDOW_SIZE_SECS),
allowed_lateness=ALLOWED_LATENESS_SECS,
trigger=AfterWatermark(
early=AfterProcessingTime(10),
late=AfterProcessingTime(10),
),
accumulation_mode=AccumulationMode.ACCUMULATING,
)
keyed = windowed | beam.Map(lambda e: (e[“user_id”], e[“amount”]))
counts = keyed | beam.combiners.Count.PerKey()
sums = keyed | beam.CombinePerKey(sum)
return (
{“count”: counts, “sum_amount”: sums}
| beam.CoGroupByKey()
| beam.Map(format_joined_record)
)
We build a reusable Beam PTransform that encapsulates all windowed aggregation logic. We apply fixed windows, triggers, and accumulation rules, then group events by user and compute counts and sums. We keep this transform independent of the data source, so the same logic applies to both batch and streaming inputs. Check out the FULL CODES here.
def process(self, element, window=beam.DoFn.WindowParam, pane_info=beam.DoFn.PaneInfoParam):
ws = float(window.start)
we = float(window.end)
yield {
**element,
“window_start_utc”: datetime.fromtimestamp(ws, tz=timezone.utc).strftime(“%H:%M:%S”),
“window_end_utc”: datetime.fromtimestamp(we, tz=timezone.utc).strftime(“%H:%M:%S”),
“pane_timing”: str(pane_info.timing),
“pane_is_first”: pane_info.is_first,
“pane_is_last”: pane_info.is_last,
}
def build_test_stream():
return (
TestStream()
.advance_watermark_to(t0)
.add_elements([
beam.window.TimestampedValue(make_event(“u1”, “purchase”, 20, t0 + 5), t0 + 5),
beam.window.TimestampedValue(make_event(“u1”, “purchase”, 15, t0 + 20), t0 + 20),
beam.window.TimestampedValue(make_event(“u2”, “purchase”, 8, t0 + 35), t0 + 35),
])
.advance_processing_time(5)
.advance_watermark_to(t0 + 61)
.add_elements([
beam.window.TimestampedValue(make_event(“u1”, “refund”, -5, t0 + 62), t0 + 62),
beam.window.TimestampedValue(make_event(“u2”, “purchase”, 12, t0 + 70), t0 + 70),
beam.window.TimestampedValue(make_event(“u3”, “purchase”, 9, t0 + 75), t0 + 75),
])
.advance_processing_time(5)
.add_elements([
beam.window.TimestampedValue(make_event(“u2”, “purchase”, 3, t0 + 50), t0 + 50),
])
.advance_watermark_to(t0 + 121)
.advance_watermark_to_infinity()
)
We enrich each aggregated record with window and pane metadata so we can clearly see when and why results are emitted. We convert Beam’s internal timestamps into human-readable UTC times for clarity. We also define a TestStream that simulates real streaming behavior using watermarks, processing-time advances, and late data. Check out the FULL CODES here.
with beam.Pipeline(options=PipelineOptions([])) as p:
(
p
| beam.Create(BATCH_EVENTS)
| WindowedUserAgg()
| beam.ParDo(AddWindowInfo())
| beam.Map(json.dumps)
| beam.Map(print)
)
def run_stream():
opts = PipelineOptions([])
opts.view_as(StandardOptions).streaming = True
with beam.Pipeline(options=opts) as p:
(
p
| build_test_stream()
| WindowedUserAgg()
| beam.ParDo(AddWindowInfo())
| beam.Map(json.dumps)
| beam.Map(print)
)
run_stream() if MODE == “stream” else run_batch()
We wire everything together into executable batch and stream-like pipelines. We toggle between modes by changing a single flag while reusing the same aggregation transform. We run the pipeline and print the windowed results directly, making the execution flow and outputs easy to inspect.
In conclusion, we demonstrated that the same Beam pipeline can process both bounded batch data and unbounded, stream-like data while preserving identical windowing and aggregation semantics. We observed how watermarks, triggers, and accumulation modes influence when results are emitted and how late data updates previously computed windows. Also, we focused on the conceptual foundations of Beam’s unified model, providing a solid base for later scaling the same design to real streaming runners and production environments.
